All of the weather performance fire resistant solid polycarbonate
sheet
PC solid sheet made of polycarbonate material,which is a very
strong and resilient thermoplastic material,with lightweight and
capable of withstanding extreme temperatures, either hot or cold.
Here are some descriptions of polycarbonate boards:
High transparency: Polycarbonate solid sheets have very high transparency and can
achieve a glass-like effect, making them ideal for many
applications that require transparent materials, such as skylights
in buildings, light panels, partitions, billboards, etc.
Strong impact resistance: polycarbonate solid sheet has excellent impact resistance and can
resist high strength impact without breaking. Therefore, it is
widely used in applications requiring high-intensity protection,
such as protective barriers for stations, airports, stadiums and
buildings.
Good UV resistance: polycarbonate board has good UV resistance and will not yellow or
discolor when exposed to sunlight for a long time. It is therefore
an ideal material for outdoor applications such as solar panels,
green houses, swimming pools and open-air bars.
Good temperature resistance: Polycarbonate solid sheet have good temperature resistance and can
be used in the temperature range of -40 ° C to +120 ° C, making
them ideal for some applications that need to withstand extreme
temperature changes, such as solar sheets and body coverings.
| Product name | Polycarbonate board Patio Cover Sun Shade Awning |
| Thickness | 0.5-20mm |
| Width | 1220mm/1560mm/1820mm/2100mm or customized |
| Light Transmission | Up to 85% |
| Color | Clear,Blue,Lake Blue,Green,Opal,or customized |
| Warranty | More than 10-year |
| Material | 100% Bayer or zhengfei Material |
| Temperature resistance range | 40°C ~ +120°C |
| Regular size(Standard Size):1220*2440mm,1830*2440mm or customized
size. |
Technical information
| Item | unit | Index Value | Test Method(ASTM) |
| Transmittance | % | 88 | D-792 |
| Specific Gravity | g/cm3 | 1.2 | D-792 |
| Impact Strength(lzod,Nick) | J/M | 907 | D-256 |
| Tensile Yield Strength | Mpa | 69 | D-638 |
| Tensile Break Strength | Mpa | 71 | D-638 |
| Tensile Elongation,yield | % | 6.5 | D-638 |
| Tensile Elongation,break | % | 120 | D-638 |
| Tensile Strength | Mpa | 86 | D-695 |
| Tensile Modulus | Mpa | 2400 | D-638 |
| Thermal Expansion Coefficient | W/m.℃ | 6.0*10-5 | D-696 |
| Thermal Conductivity | W/m.K | 0.22 | C-177 |
| Heat Deformation Temperature | ℃ | 135 | D-648 |
| (Load 1.81Mpa) | ℃ | 135 | D-648
|

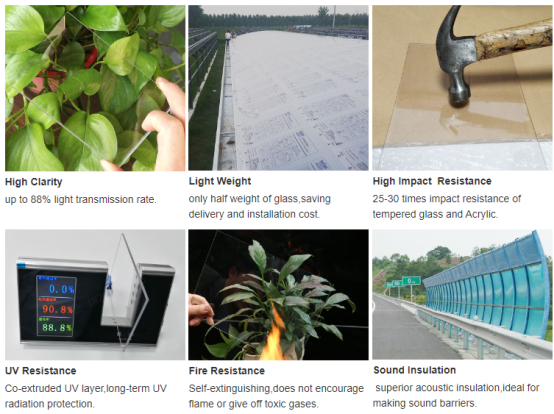

Features
Color selection
Applications
Company information
Founded in the 2014,SUZHOU ZHENGFEI BOARD CO.,LTD is a professional enterprise which specializes in manufacture and
processing of Polycarbonate sheet.By using fine materials (mainly
from Bayer and zhengfei) and introducing advanced co-extrusion
production line,we offer superior quality products to customer from
all around the world.
FAQ
Q1. Are you factory or Trade Company?
A: we’re factory in this field over ten years with professional
experience.
Q2. How can I get a sample,and how long to get?
A: We provide samples free,customers bear the freight cost,the
sample will arrive about one week.
Q3: Is there UV resistant layer on the sheets ?
A: Yes, our PC sheet usually has one-side UV resistant layer.We
also provide both sides UV resistant layer if the customer need.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shipment.
